Downhole Tools-manufacture,factory,supplier from China

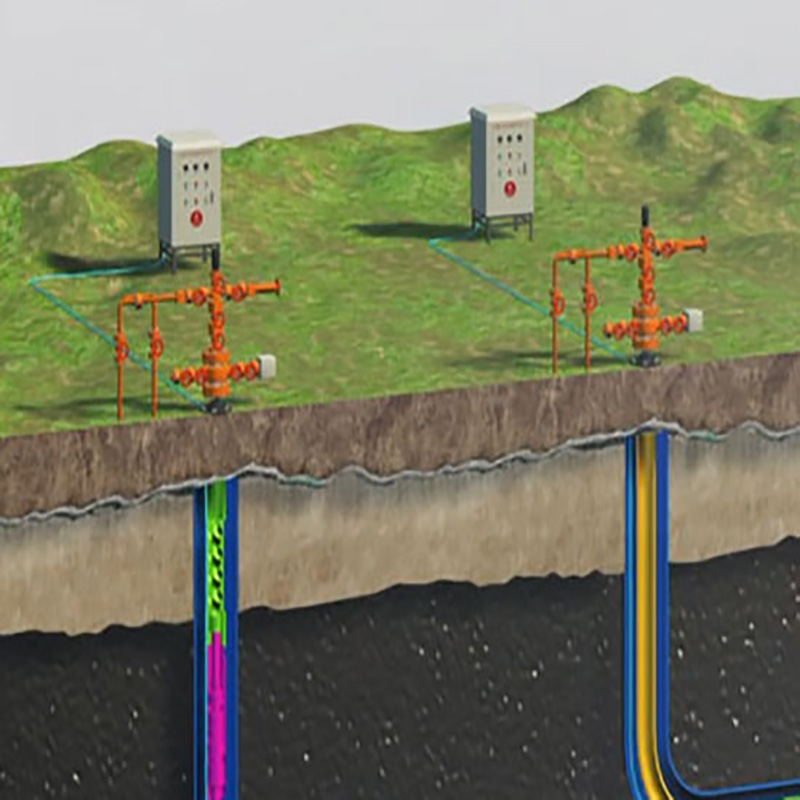

The linear motor carries out reciprocating movement under the control of the ground control cabinet, to drive the plunger of the sucker rod pump reciprocating, so as to complete the lifting well liquid to the ground via tubing.

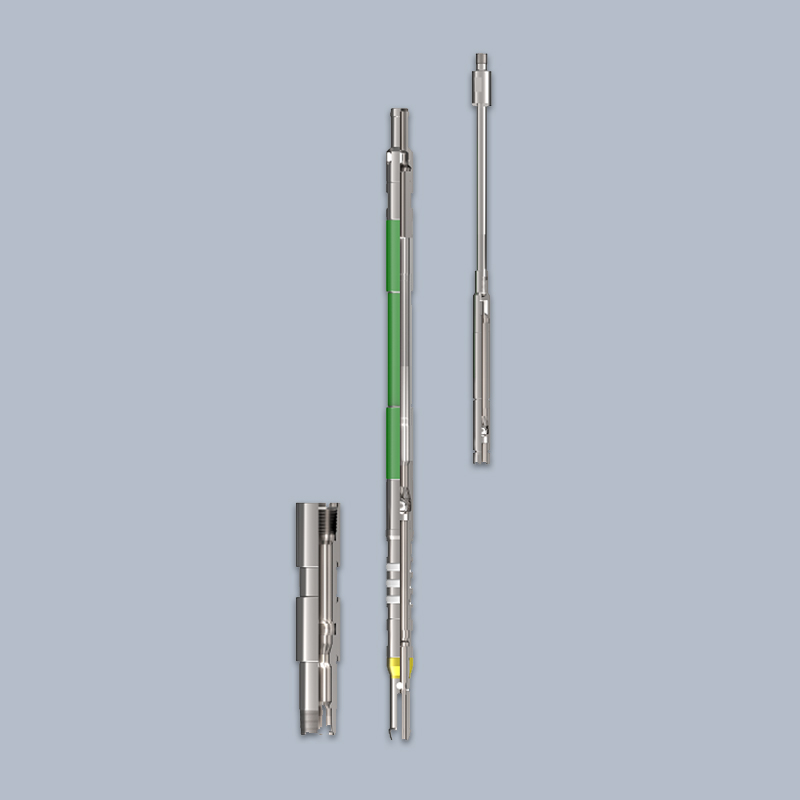

The Double Sealed Rod Pump designed and developed by Weima applies the combination of mechanical seal and cup seal .

Rod, Stationary Heavy Wall Barrel, Top Mechanical Anchor Pump

Double Acting Pump designed and developed by Weima is used for well with high reservoir pressure and sufficient liquid supply, especially those where conventional pumps cannot meet the displacement requirements.

The eccentric pump designed by our company can exploit crude oil with viscosity＞4000mpa*s.

The overall appearance of the motor is flat type, the internal stator is independent centralized winding mode

The hydraulic feedback pump designed by our company can exploit crude oil with viscosity ＞ 4000mpa*s.

Seat plugs are standard on the plunger of a pump. For jacking traveling seat.

The fixed valve puller provides a device whereby a tubular oil pump can be used to carry out fixed valve maintenance operations by simply lifting the sucker rod string.

The upper open bonnet is standard on tubular pumps.The upper part is connected with the sucker rod string, the lower part is connected with the plunger, and the traveling valve is placed in it.Material selection and structural strength are the key factors in product design.In order to strengthen the protection of the valve hood, there are alloy lined valve hood designed for thermal production and high flushing oil Wells.There is a rubber lined valve cover designed for cold production and high stroke oil Wells.

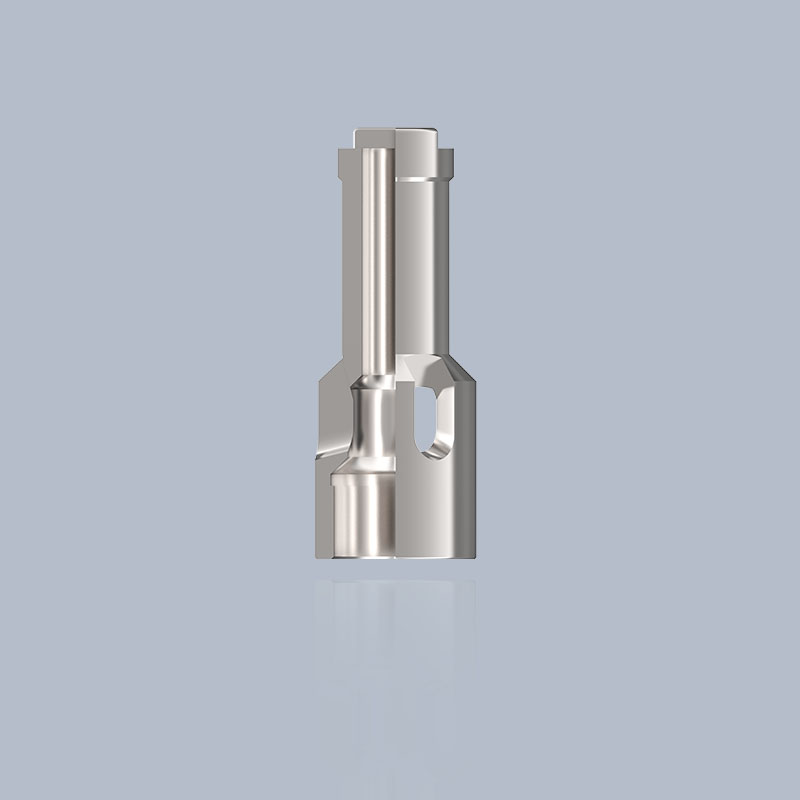

Stem guide sleeves are standard on rod pumps.Used for righting valve stem.

The pump anchor designed and developed by Weima is used to let the rod pump seal in the tubing, not use the conventional seating any more. It can also be used in oil wells that must constantly adjust the pump setting depth of rod pump as the supply level changes to improve production efficiency.

According to the characteristics of heavy oil wells, Weima uses the pressure of the tubing liquid column to assist the sucker rod to descend, and has designed several special henavy oil pumps.

The two-stage anti-gas rod pump designed and developed by Weima adopts a slender upper plunger connect with a larger diameter lower plunger in series to divide the lower pump barrel into upper and lower two working chambers.

Hydraulic drive oil production system includes: control cabinet, hydraulic control device, liquid transmission pipe, hydraulic drive propeller and plunger pump.

Hydraulic station produces hydraulic oil with high pressure, drive the hydraulic cylinder operation through the hydraulic pipe line
